LD-102 single channel vehicle loop detector wide sensing range
sensitive for Barrier Gate
Product Name: Parking Barrier Gate Loop Detector (Loop Sensor)
Description: JUTAI LD-102 is a specialized sensor designed for parking barrier
gates, ensuring seamless automatic gate operation by efficiently
identifying and detecting various vehicles, including oversized
vehicles, trucks, and motorcycles.
Advantages:
1. Wide Sensing Range & Enhanced Sensitivity: Accurately detects
diverse vehicles with a sensing range from 15 to 2000μH.
2. Automatic Reset Capability: Activates automatic reset in case of
malfunction, enhancing system stability.
3. Flexible Detection Level Selection: Offers 16 selectable levels
for tailored requirements.
4. Robust Lightning Protection: Withstands lightning strikes up to
40000V for sustained operation.
5. Broad Operating Environment Range: Operates from -40°C to +70°C
for consistent performance in diverse weather conditions.
Experience reliable vehicle detection with JUTAI LD-102 Loop
Detector for Parking Barrier Gates.
Product parameters:
| Specification | Value |
| Self-turning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) / 12-24VADC |
| Operation Temp | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output | Blinks slowly: may indicate a short circuit or insufficient number
of turns <br> Blinks faster: may indicate an open loop or
excessive number of turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red <br> Channel LED - Green |
| Reset | Reset by push button on the front of the enclosure |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
Connection Details
Switch 2 (Dipswitch Settings)
1.DIP 1 & DIP 2 Setting Special Functions
2.DIP 3 & DIP 4 Setting Relay B Output
3. DIP 5 Setting Automatic Reset
4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to
avoid the interference
Loop Installation:
Trouble Shooting:

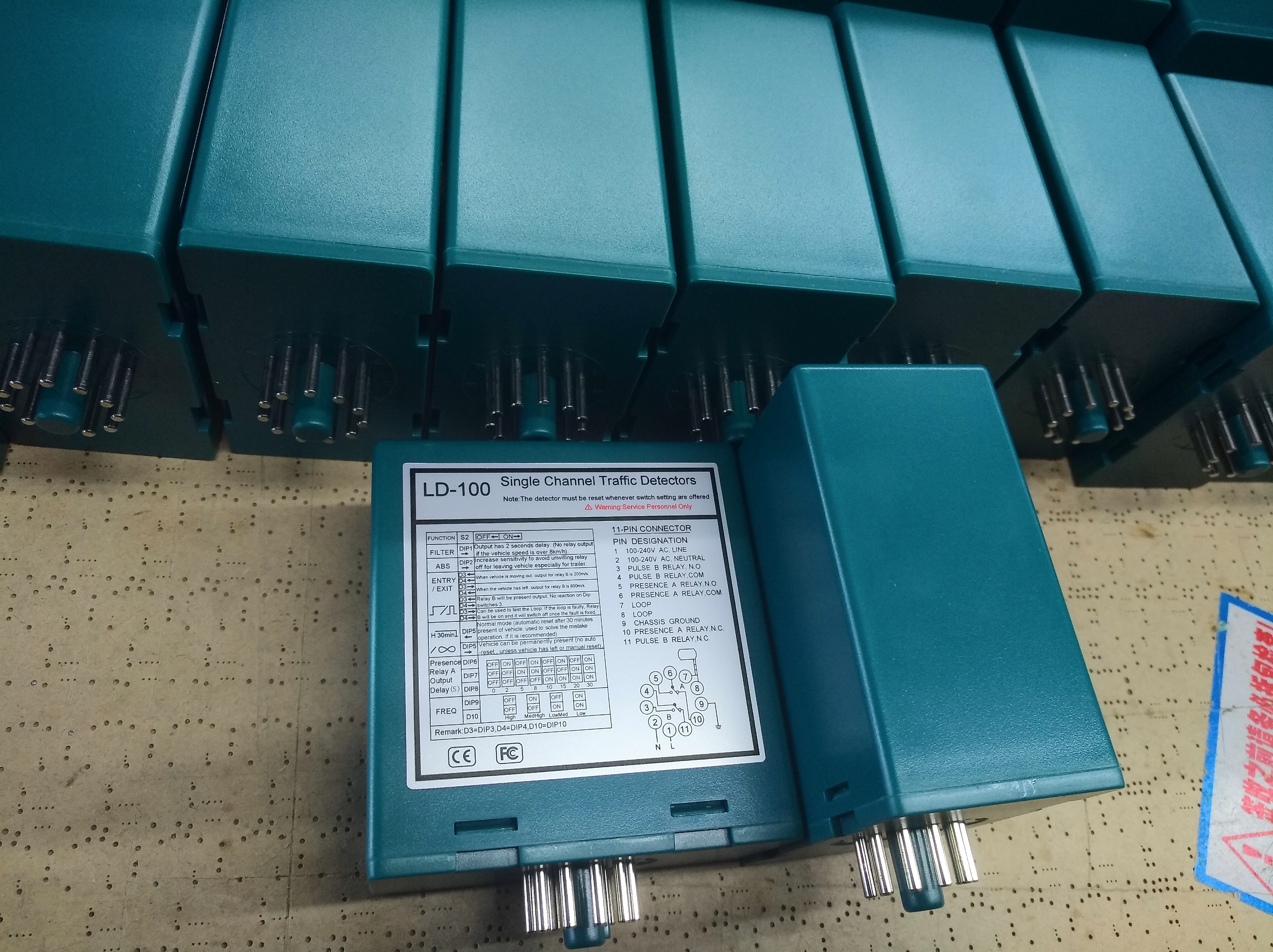

Mass Production:
Our production line ensures efficient mass production, rigorous
quality control, and thorough pre-shipment testing to deliver Loop
detector products of the utmost perfection.
Certification:
