Anti-Clone RFID Active 2.4G Long-Range Non-Stop Parking Reader
Professional Manufacture JUTAI Long Range 2.45G RFID Active Reader
JUTAI Long Range 2.45G RFID Active Reader is a active reade, the
smart tag always output signal when near the active long range
reader then working with reader. 2.45G frequency long range active RFID reader can through wall and
solar film with our smart tag. We are a company speciazlizing in
the prodcuction of RFID reader. From RFID reader designa and
develop to production. we have been sold more than 5,000 pcs long
range reader to all over the world.
Application
1. Personanl management: School, sanatorium(old people),hospital
2. Commodity flow control and tracking system
3. Zone tracking management
4. Elderly apartment personnel location solution.
JUTAI Long Range 2.45G RFID Active Reader Function Features
1.With high-performance 32-bit ARM Cortex-M3 coremicrocontroller
2.Tag Identification Speed: 2000 tags/sec(sending by time)
3.Tag Reading Capacity: 1000 tags/sec
4.Tag Buffer Capacity:1000 tags (anti-reread)
5.With 18dBi high-gain directional antenna
6.Maximum Reading Distance: 120 meters
7.Directional Capacity: 30:1
8.With signal attenuator, reading distance can be adjusted from 1
to 120 meters
Technology parameter
| Processor | 32-bit ARM Cortex-M3 core microcontroller |
| Work Frequency | 72MHZ |
| Reading Capacity | 1000 tags/sec |
| Buffer Capacity | 1000 tags (anti-reread) |
| Reading Distance | Maximum 120 metes |
| Attenuation Distance | 1 to 120 meters adjustable |
| Voltage | +12VDC(7-12VDC) |
| Frequency Range | 2.4GHz～2. 480GHz |
| Work Temperature | -40℃～+85℃ (industrial-grade) |
| Communication Interface | WG26 WG34 WG36 WG44 RS232 RS485 |
| Power Angle | Horizontal 55°/Vertical 45° |
| Polarization Way | Vertical/Horizontal |
| Front to Back Ratio | ≥24dB |
| Dimension | 308* 308* 80mm |
System Highlight
- Wigand 26/34 interface, customers can select our whole solution or
can easy to integrate different access control system.
- IP 65 Waterproof Rate, no need to add additional device for the
rainy days.
- Reader inside Built-in lightning protection device
- Long range reading range and signal can pass though solar film
easily.
- New anti-interference technology, and which can avoid the false
operation for the reader in exit/entry.
- Support local anti-Passback function between 2 reader units
- 26,000 users in max
- 100,000 records can be saved(cycle/lost)
- 64 different time zone groups can be setting according to customer
different requirement.
- CCTV system integration and image compare function which makes the
community and property safe.
- Suit for Long range parking system and hands free auto-gate system
application.
Why Choose Our JUTAI RFID Reader?
1) Enjoy the convenience of handsfree - no need stop to flash card.
2) No more getting hand wet during rainy days or expose to robbery
threat when winding down windows to flash card.
3) Reduce congestion of long car queue during peak hours.
4) Add premium prestige reputation to your residential or
commercial building.
Functions and Advantages:
Orientation Identification:
- Equipped with an 18dBi high-gain directional antenna, offering a
directional capacity of 30:1 for precise orientation
identification.
Adjustable Reading Range:
- Features a signal attenuator, allowing the reading distance to be
adjusted from 1 to 30 meters, catering to various customer
requirements in real-world applications.
Long-Range Reading Distance:
- Capable of reaching a maximum reading distance of 30 meters, making
it an optimal solution for long-range parking identification system
applications.
High-Performance Microcontroller:
- Powered by a high-performance 32-bit ARM Cortex-M3 core
microcontroller, ensuring efficient operation and rapid tag
identification.
Tag Identification Speed and Capacity:
- Achieves a tag identification speed of 50 tags per second, with a
simultaneous tag reading capacity of 50 tags per second, enhancing
efficiency in data processing.
Enhanced Security Against Disturbance:
- Utilizes frequency hopping and multi-type address technology, along
with strong encryption of card information through unique program
encryption technology, ensuring high security levels against data
breaches.
Anti-Collision Capability:
- Capable of reading up to 50 RFID card IDs simultaneously, enabling
efficient anti-collision functionality.
Multi-Type Data Output Format:
- Supports multiple data output formats, including Weigand and RS485,
offering versatility in data transmission.
Installation and ApplicationI. Open the backside cover for setting the length, range reader,
refer to step 1.
2. Fixing the reader with inner hexagon screws, refer to step 2.
3. Using U-type support fix the L support to the pole.with 60mm
diameter, refer to step 3,4,5,6,7.
4. Reader will have "Bee Bee "sound after power.
Notice: Re-power again after setting be finished

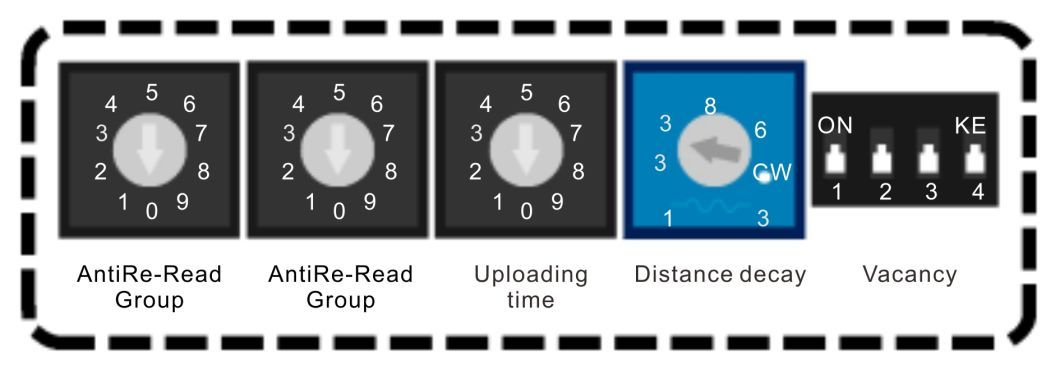

Function Set
Packing/ShippingPacking list:| 1 Reader | 2 User Manuals | 3 Line | 4 Mounting bracket&Screw&Fuse |
| 1 Unit | 1 Pcs | 12 PIN | 4 pcs M6*6 inner hexagon screw |
| | | U/L Support |
AntiRe-Read Group
| Position | 0&0-9 | 1&0-9 | 2&0-9 | 3&0-9 | 4&0-9 | 5&0-9 | 6&0-9 | 7&0-9 | 8&0-9 | 9&0-9 |
| Time(s) | 0-9 | 10-19 | 20-29 | 30-39 | 40-49 | 50-59 | 60-69 | 70-79 | 80-89 | 90-99 |
Uploading time interval setting
| Position | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Time
(s) | 0.1 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |

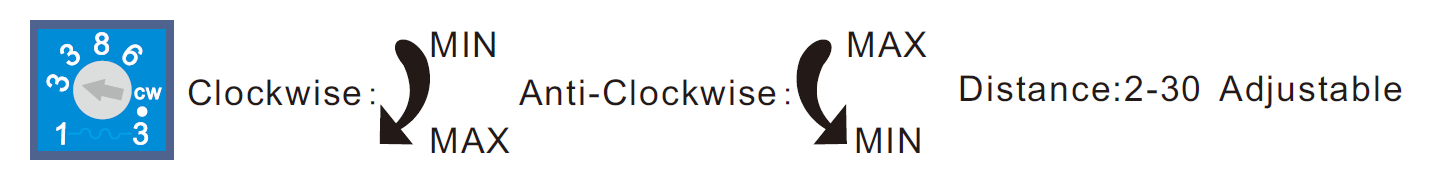

Distance decay
Packing list Installation:(Unit:mm)
1*pcUser Manual
1* pc Reader
1* pc line 12PIN
1*Mounting bracket &Screw&Fuse
4Pcs M6*6 inner hexagon screw U/L Support
How to Instllation The JUTAI Long Range 2.45G RFID Active Reader
◇Open the back side cover for setting the long range reader, refer
to step 1.
◇Fixing the reader by inner hexagon screws,refer to step 2.
◇Using U-type support fix the L support to the pole with 60mm
dismeter, refer to step 3,4,5,6,7.
◇Reader will has "Bee Bee "sound after power.
