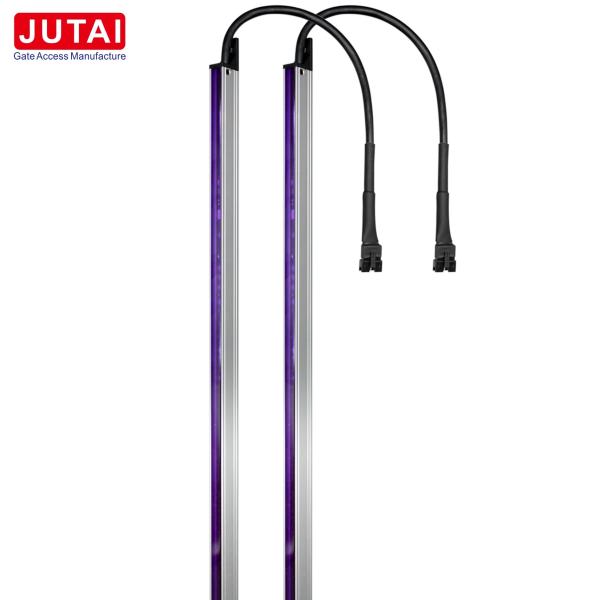

JUTAI 1.8m 29-Beam Safety Blanking Light Curtain Sensor
Intelligent Industrial Safety Guardian with Dynamic Shielding Technology

Core Advantages

Seamless Integration
With an ultra-slim 12.5mm cross-section and 1838mm total length, this sensor embeds discreetly into door gaps without obstructing mechanical operations.

Environmental Resilience

• Sunlight Immunity: Operates reliably under 100,000Lux ambient light (including direct sunlight).
• Military-Grade Durability: Imported infrared emitters ensure 500,000+ operation cycles across -20°C to +60°C extremes.

Functional Highlights

3D Protection Grid
29 infrared beams spaced at 60mm intervals create a detection zone accurate to 20mm objects (e.g., forklift tines). The Adaptive Blanking Algorithm intelligently distinguishes between normal door closure and safety hazards:

1. Safe Closure Recognition: Sequential beam blocking from top to bottom triggers no alarm.
2. Emergency Response: Irregular beam interruption activates door reopening within 0.1s.

Technical Specifications

Wiring Configuration

Dual-End Synchronization

Note: Connect yellow wires between transmitter and receiver for synchronization.

Why Choose Shenzhen JUTAI Comm Co., Ltd.?

As a leader in industrial safety solutions for over 10 years, JUTAI delivers precision-engineered systems that combine convenience and protection:

1. Microwave Motion Radar Sensors

   • Automatically detects approaching forklifts/personnel to trigger door opening, enhancing operational efficiency.
   • 5-15m adjustable detection range with 360° coverage.

2. Safety Light Curtain Sensors

   • Provides real-time intrusion detection to prevent entrapment accidents.

Together, these technologies form our "Gate Guardian" Suite – a complete solution for smart industrial door systems that balances safety with workflow optimization.

Your Trusted Partner in Industrial Safety

• Certified Quality: EN/IEC 61496-1/2 compliant
• Custom Solutions: Tailored configurations for unique operational needs
• 24/7 Support: Expert guidance from installation to maintenance
