Customized Blanking Safety Light Curtain 1.5m Length 8m Range IP67 -30℃ Operation

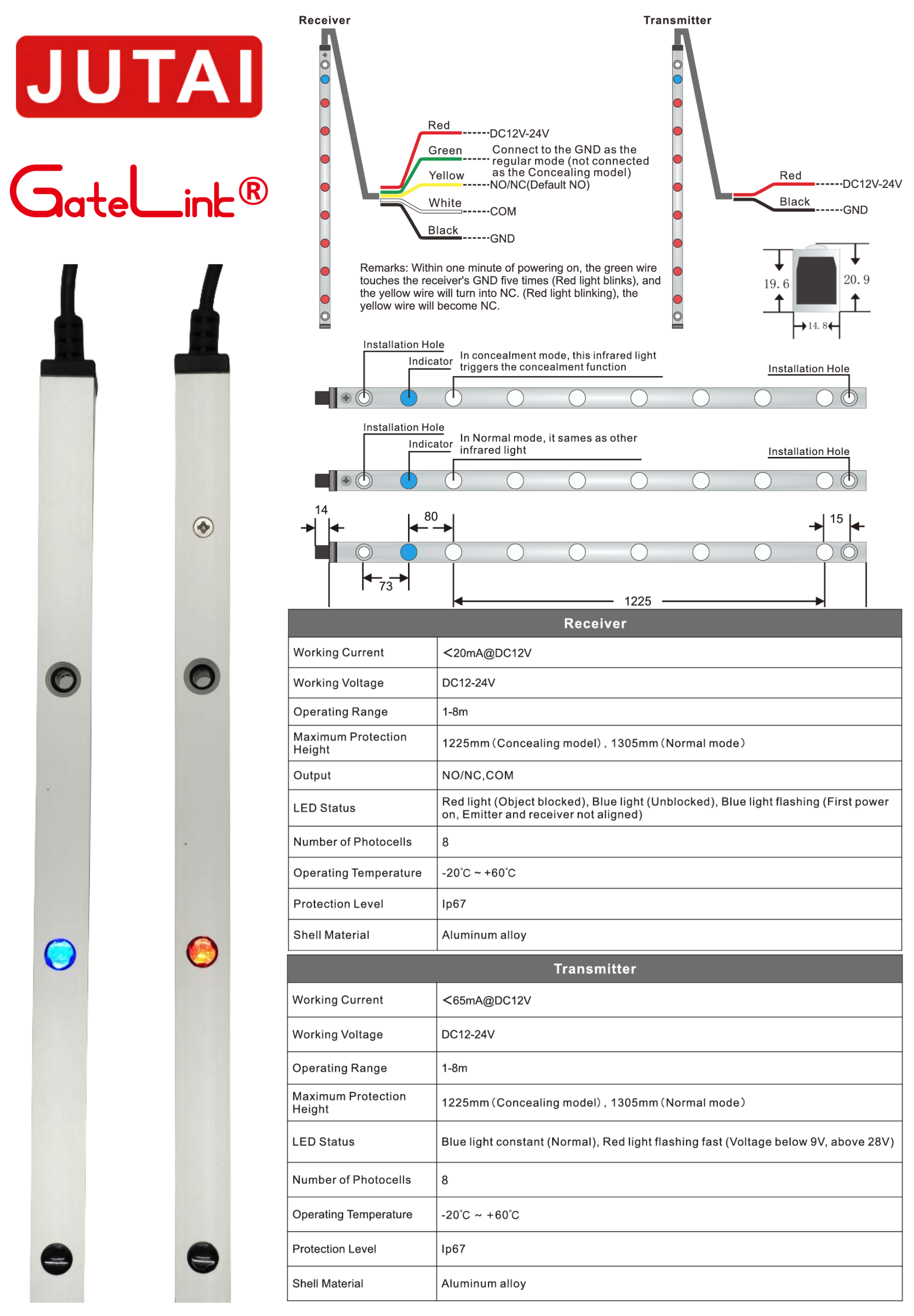

JUTAI 1.5m Light Curtain CL15-8L8.pdf

CL15-8L8 Infrared Safety Light Curtain Sensor with Blanking Function for industry Door

JUTAI IP67 Blanking Safety Light Curtain

Blanking Mode:

1. The safety light curtain is installed inside the door gap.

2. When the door closes normally, the light beams of the light curtain are blocked from top to bottom in sequence. This sequential blocking is recognized by the system as a normal door closing action.

3. When the door is in the process of closing and an object passes below and blocks the light beam, it will trigger the door to open at this time.

Normal Mode:

1. It is installed on the inside and outside of the door. The light beams are not passed through when the door is closed.

2. In this mode, no matter which light beam of the light curtain is blocked, the system will immediately output the door opening signal.

Advantages:

1. Suitable for cold storage doors and humid environments: -25℃

2. No need for a synchronous wire control box

3. Response speed: 0.03 seconds

4. Resistant to sunlight and electromagnetic interference

5. Customization (quantity) is supported

Technical Specifications

Model	CL15-8L8
Technology	Active Infrared Sensor with Strong Light Resistance
Detection Range	Up to 8 meters
Response Time	Fast and reliable
Working Current	<20mA at DC12V
Working Voltage	DC12-24V
Output Methods	NO/NC and COM
Applications	High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators
Protective Height	Max 1225mm (concealing mode), 1305mm (normal mode)
Operating Temperature	-25 ~ +70℃
Protection Level	IP67
Shell Material	Aluminum alloy

Installation Guidelines

Step 1: Remove Covers and Connect Wires

Detach Covers: Gently remove the top and bottom covers of the sensor.
Wire Connections: Make the necessary wire connections and thread the end through the designated port.

Step 2: Position and Mark Holes

Alignment: Align the transmitter and receiver in parallel to determine the precise installation position.
Marking: Accurately mark the hole positions on the wall for precise drilling.

Step 3: Drill and Fix

Drilling: Utilize a percussion drill to create holes at the marked positions.
Securing: Insert wall plugs into the drilled holes and secure them with screws.

Step 4: Mount Transmitter and Receiver

Mounting: Attach the transmitter and receiver to the wall using M3*25 screws.
Power Connection: Connect the power supply and test the alignment of the sensor.
Adjustment: If needed, adjust the angle by rotating the aluminum tube. Once aligned, firmly tighten the rotating screw.

Step 5: Replace Covers and Final Testing

Reattach Covers: Reattach the top and bottom covers using M2*8 screws.
Final Test: Carry out a comprehensive test to ensure the proper functionality of the sensor.

8-Beam 1.5m Safety Light Curtain Sensor
