The parking lot entrance/exit ticket box is an essential equipment for enclosed parking facilities. It offers self-service card issuance and collection services, enhancing the efficiency of parking management.
- Dual Dispenser/Collector Design: The entry features dual card dispensers, doubling the card capacity and reducing manual workload. The exit is equipped with dual card collectors, ensuring continuous operation even if one collector fails.
- User-friendly Operation: Card issuance and collection buttons, along with slot lighting, are provided. Voice prompts and display screens offer intuitive guidance throughout the process.
- Vehicle Sensing: A dual ground sensor system accurately differentiates between motorcycles and small vehicles for precise tariff calculation.
- Intercom Capability: The built-in intercom button and microphone support LAN intercom with software, eliminating the need for additional intercom systems and reducing costs.
- Gate Status Monitoring: The gate feedback interface allows for real-time visualization of gate status and peripheral connections on the management software.
- Reliable in Harsh Conditions: With an industrial-grade design, it can operate stably in temperatures ranging from -40°C to 85°C, ensuring 24/7 performance.
- Easy Network Integration: The RJ45 interface enables seamless connection to the LAN. Once the server's IP address is configured, it automatically connects to the management software, simplifying installation and commissioning.

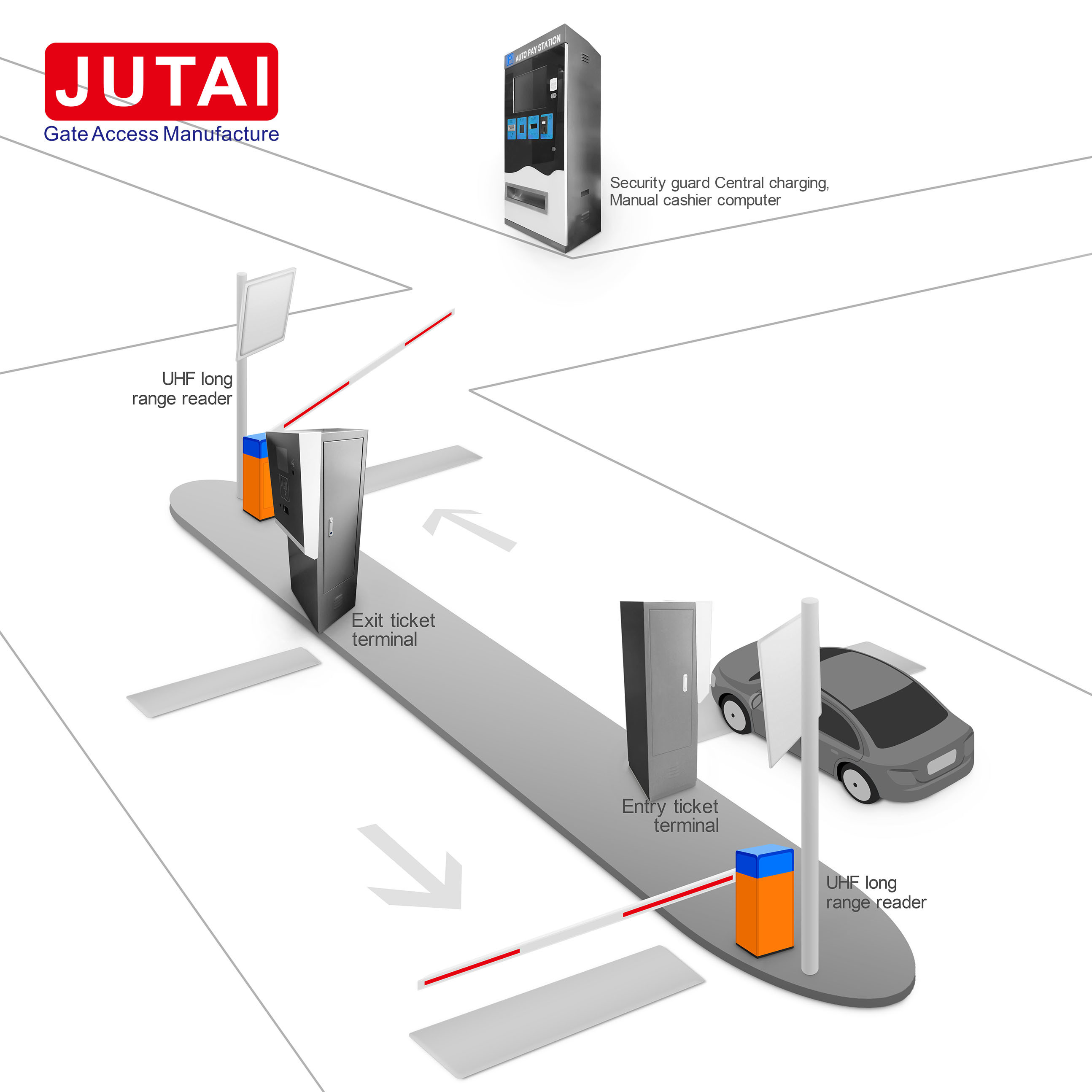

This ticket box is suitable for a wide range of enclosed parking lots, including those in residential areas, supermarkets, large commercial centers, and mixed-use developments. It effectively manages both fixed vehicle access and temporary parking fees, offering multiple billing rates and methods. It also supports differentiated billing based on vehicle types and allows for customization of special rates.
| Specification Item | Details |
| Model | JTPE - 1 (Entrance)/JTPE - 5 (Exit) |
| Power Supply | AC 110~220V |
| Power Consumption | ≤50W |
| Communication Interfaces | RJ451, RS2324, RS485*1 |
| Screen Brightness | 900nit (LCD)/1500nit (LED) |
| Screen Resolution | 800*600 (LCD)/64*16 (LED) |
| Screen Size | 8 inches (LCD) |
| Card Ejection Type | 13.56MHz Mifare1 card |
| Card Dispenser/Collector Quantity | Up to 2 |
| Monthly Card Type | 13.56MHz Mifare1 card or 125K ID card |
| Voice Prompts | Supports Chinese and English |
| Operating Temperature | -30°C~+70°C |
| Operating Humidity | 5% to 95% without condensation |
| Installation Method | Ground installation |
| Dimensions | 482*443*1280mm |

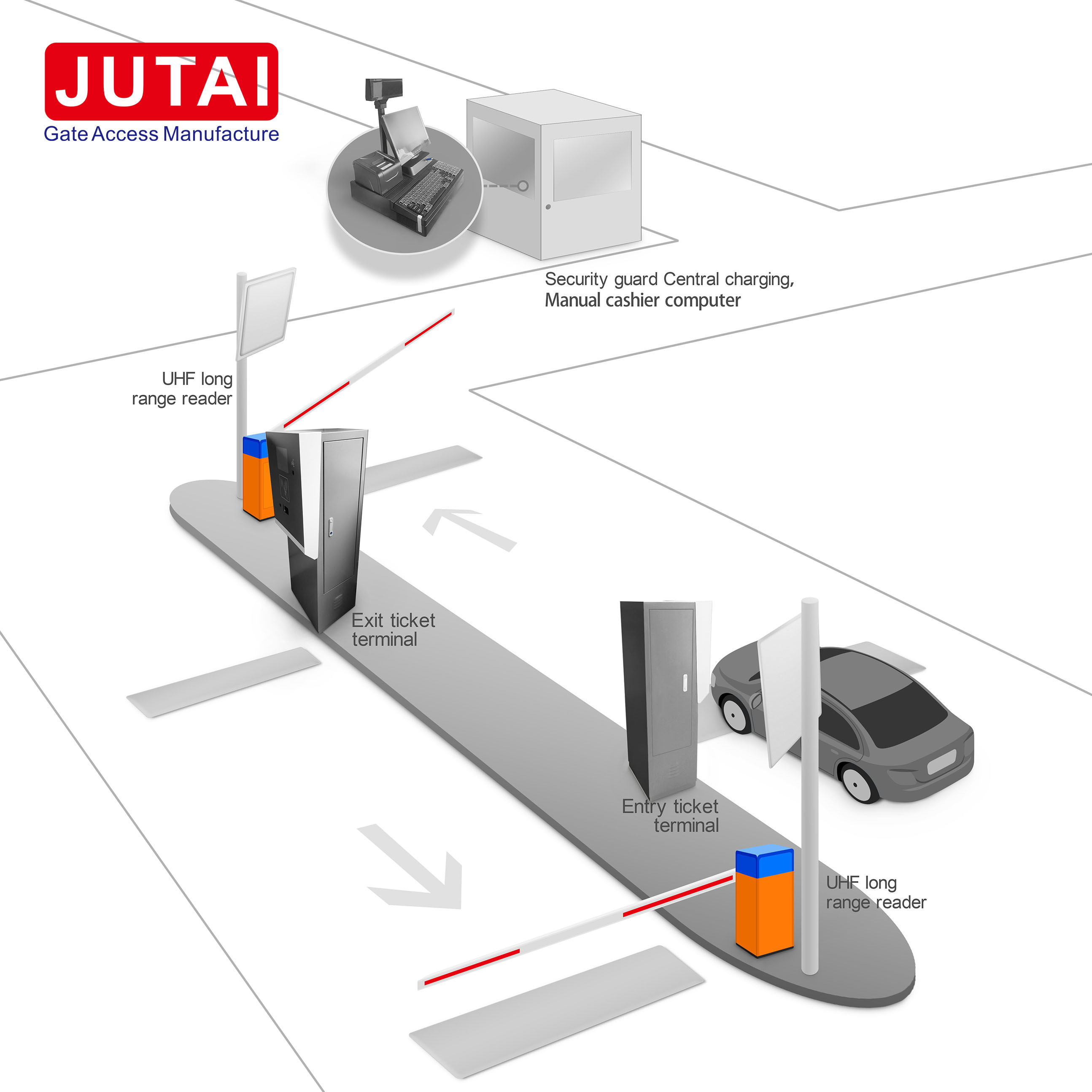

The ticket box is connected to a power source of 110~220VAC. It is also linked to the managing computer via a network cable (RJ45) through an RJ45 Switch. The controllers are connected to the ticket box at the entrance and exit, and these are further connected to the gates.
- The internal wiring of the ticket box is complex and pre-completed at the factory. The provided diagram shows only the external device connection.
- When wiring the ground induction loop, strictly adhere to the twisted pair principle with the twisted pair connected to the ground detection sensor. Failure to do so may lead to inaccurate vehicle detection.
- If the wiring interface positions on the diagram do not match the actual device, refer to the actual device's wiring positions and labeling.
The ticket box has dimensions of 482mm (width) * 443mm (depth) * 1280mm (height). The internal layout and component placements are designed to optimize space utilization and functionality.
- Key Features:
- Industrial-grade construction for stable operation in -40°C to 85°C with a watchdog to prevent system crashes.
- High-speed TCP/IP interface for fast communication and convenient wiring.
- Provides a DLL for easy function calls in various programming languages.
- Multiple communication interfaces to meet diverse industry requirements.
- Three light control outputs for 5 - 24V LED lights.
- Three ground induction inputs for real-time vehicle type detection.
- Three button inputs for different operations.
- Dual gate control with isolation for simultaneous gate operation.
- Dual gate feedback with isolation input for monitoring gate status.
- Dual card dispenser/collector interfaces.
- Multi-functional button for reset, default settings restoration, and forced upgrade.
- Back-end web page access for IP address changes.
- Customizable communication port numbers.
- Supports external LED and LCD displays.
- Allows for online or SD card-based upgrades.
- Aluminum shell with laser printing for efficient heat dissipation and an attractive appearance.
| Specification Item | Details |
| Model | PM - 900 |
| Power Supply | DC12V + DC24V |
| Power Consumption | ≤10W (excluding external LED screen) |
| Communication Interfaces | 1 RJ45, 4 RS232, 1 RS485 |
| Input Interface | 6 non-isolated IO inputs, 4 isolated IO inputs, 2 Wiegand self-adaptive interfaces |
| Output Interface | 4 relay dry contacts (normally open), 3 traffic light controls (OC output) |
| Card Reader Interface | Supports connection of 2 card reader devices |
| Voice Input | Supports intercom function |
| Voice Prompt | Supports Chinese and English |
| Operating Temperature | -40°C ~ +85°C |
| Operating Humidity | 5% - 95%, non-condensing |
| Installation Method | Back screw installation |
| Dimensions (Length × Width × Height) | 218 × 123 × 43.1 mm |
- Main Features:
- Industrial design with a working temperature range of -30°C to +70°C, suitable for the box's internal environment.
- 900nit ultra-high brightness for visibility in sunlight and a wide viewing angle.
- Built-in RTC clock with power-off data retention and automatic time recovery on power-on.
- Adjustable backlight brightness with 64 levels, enabling energy-saving at night.
- Aged for 24 hours before leaving the factory to ensure quality.
| Functional Index | Details |
| Model | JTNP - DWT80600T080_09WN |
| Power Supply | DC12V |
| Power Dissipation | ≤8W (At maximum backlight brightness) |
| Resolution Ratio | 800×600 |
| Active Area | 162×121.5mm |
| Backlight Brightness | 900nit (visible in sunlight), 64 levels adjustable |
| Communication Interface | 1 RS232 |
| Operating Temperature | -30°C ~ +70°C |
| Operating Humidity | 5% - 95%, no condensation |
| Installation Method | Back screw mounting |
| Dimensions (Width × Height × Thickness) | 204×148.8×17.5mm |
- Main Features:
- Industrial design for durability in harsh environments.
- Friction hair card mechanism for reliable card dispensing.
- Hardware watchdog and embedded micro real-time operating system for stability.
- Pre-issue card function to speed up the process.
- Automatic alarms for low card, empty card, and faults.
- Automatic reset after error alarms.
- RS232 and I/O level control interfaces.
- High card recycling capacity with an alarm for full card.
- Enhanced safety recovery to prevent card loss.
- Stackable card box design for flexible capacity.
- Adjustable card thickness.
- Sliding rail installation for easy maintenance.
- Full mold production for accuracy and quality.
| Functional Index | Details |
| Model | JTNP - 820M |
| Power Supply | DC12V |
| Power Dissipation | ≤24W (Full speed operation) |
| Card Size | 54×85mm |
| Thickness Caliper | Adjustable from 0.3 to 2.5mm, default is 0.8mm |
| Card Material | Paper or Polyester cards |
| Exit Time | About 0.5 seconds |
| Card Box Capacity | 150 sheets (calculated at 0.8mm card thickness), can be increased to 270 sheets |
| Communication Interface | 1 RS232, 12P IO interface |
| Operating Temperature | -30°C ~ +70°C |
| Operating humidity | 30% - 90%, no condensation |
| Installation Method | Guide rails are installed in the cabinet |
| Overall Dimension (Length × Width × Height) | 316.5×99.6×237mm |
- Main Features:
- Flexible card handling options in case of blockage or timeout.
- Adjustable card recognition timeout settings.
- Can provide signals to the host computer.
- Wrong state sound and light alarm.
| Functional Index | Details |
| Model | JTNP - 615P |
| Power Supply | DC24V |
| Power Dissipation | ≤24W (Full speed operation) |
| Card Size | 54×85mm |
| Card Material | Paper or polyester cards |
| Exit Time | About 2s |
| Communication Interface | 1 RS232, 12P IO interface |
| Operating Temperature | -30°C ~ +70°C |
| Operating Humidity | 30% - 90%, no condensation |
| Installation Method | Guide rails are installed in the cabinet |
| Dimensions (Width × Height × Thickness) | 140×94×102mm |
- Main Features:
- Font enlargement from 1x to 7x.
- Long-life cutter with over 1 million paper cuts.
- Multiple sensors for printer status monitoring.
- Supports barcode and QR code printing with adjustable pixel size.
- Built-in character libraries.
- USB or RS232 IAP update for easy maintenance.
| Functional Items | Details |
| Model | JTNP - DYJ - ZJT01 (printing head)/NP - DYJ - ZZB01 (main board) |
| Power Supply | DC24V |
| Power Consumption | ≤48W (peak value during printing) |
| Instruction Set | ESC/POS |
| Printing Method | Line thermal |
| Resolution | 203dpi, about 8 dots per mm |
| Printing Speed | 120 - 150mm/second |
| Bill Size | 58mm |
| Print Life | More than 100Km |
| Communication Interface | 1 RS232, 1 USB interface |
| Operating Temperature | 20°C - +70°C (the best printing effect is within the range of 5°C - 50°C) |
| Working Humidity | 30% - 90%, no condensation |
| Installation | Installed in cabinet for use |
| Dimensions (length × width × height) | 126.9×91.9×57.5mm (printing head)
96×55×20mm (main board) |
- Main Features:
- Industrial-grade design for continuous operation in -40°C to 85°C.
- Reads TypeA protocol M1 card, customizable for TypeB.
- RS232 communication interface with SDK for development.
- Multi-hole design for compatibility.
| Indicator Items | Details |
| Model | JTNP - RW102 |
| Power Supply | DC5V |
| Power Consumption | ≤1W |
| Card Reading Type | 1 RS232 |
| Reading Distance | Type A, Type B (customized) |
| Card Reading Speed | 3 - 5cm |
| Reading Time | Less than 0.3 seconds |
| Working Temp | -40°C - +85°C |
| Working Humidity | 5% - 90%, no condensation |
| Installation | Mounted for use in cabinets |
| Dimensions (Width × Height × Thickness) | 65×57mm |
- Main Features:
- Industrial-grade design for stable operation in -40°C to 85°C.
- Reads TypeA protocol M1 card, customizable for TypeB.
- RS232 communication interface with SDK for development.
- Multiple fixed hole design for compatibility.
| Functional Index - Ticket Box IC Reader | Details |
| Model | JTNP - RW101 |
| Power Supply | DC5V |
| Power Dissipation | ≤1W |
| Communication Interface | 1 RS232 |
| Read Type | Type A, Type B (Customization Required) |
| Read Distance | 8 - 10cm |
| Read Speed | Less than 0.3 seconds |
| Operating Temperature | -40°C - +85°C |
| Operating Humidity | 5% - 90%, non-condensing |
| Installation Method | Installed for use in a cabinet |
| Overall Dimension (Length × Width) | 133.5 × 126.2mm |
