    1500mm 16 Beams Industrial Safety Light Curtain Sensor For High-Speed Doors

    Ask Lasest Price
    Brand Name : JUTAI
    Model Number : CL15-16L
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
    Supply Ability : 1000 pieces per month
    Delivery Time : 5 - 8 working days
    • Product Details
    • Company Profile

    1500mm 16 Beams Industrial Safety Light Curtain Sensor For High-Speed Doors

    Product Description

    8-Beam 1.5m Safety Light Curtain Sensor

    IP67 Waterproof Safety Light Curtain Sensor CL15-16L by Shenzhen JUTAI Comm Co., Ltd.

    Product Overview

    The IP67 Waterproof Safety Light Curtain Sensor CL15-16L from Shenzhen JUTAI Comm Co., Ltd. is designed to deliver reliable safety protection in industrial environments, especially those exposed to dust, moisture, and harsh operating conditions. With its IP67 waterproof rating, this sensor ensures dependable performance in environments such as manufacturing plants, warehouses, cold storage rooms, and automated production lines.

    The CL15-16L model features 1500mm length and 16 beams with a beam spacing of 75mm, offering enhanced detection coverage for industrial doors and machinery. This model is perfect for safeguarding large areas, providing high sensitivity and durability, and performing optimally even in challenging environments.


    Model Variants

    ModelLengthBeam Count
    CL05-4L500mm4 beams
    CL05-8L500mm8 beams
    CL10-8L1000mm8 beams
    CL10-16L1000mm16 beams
    CL15-8L1500mm8 beams
    CL15-16L1500mm16 beams
    CL20-8L2000mm8 beams
    CL20-16L2000mm16 beams
    CL25-8L2500mm8 beams
    CL25-16L2500mm16 beams

    Key Features

    • IP67 Waterproof Protection: Fully dustproof and waterproof, making it perfect for challenging industrial environments.
    • Flexible Operating Modes:
      • Blanking Mode: Installed inside the door gap, this mode detects sequential beam blockage during door closure and triggers immediate reopening if an obstruction is detected.
      • Normal Mode: Mounted on both sides of the door, this mode triggers a door-opening signal when any beam is blocked, ensuring safety in all situations.
    • High Detection Accuracy: The CL15-16L model, with a beam spacing of 75mm, ensures highly accurate and reliable detection, even in areas where narrow gaps or small obstructions are present.
    • Durable and Impact-Resistant: Built with high-quality materials, this sensor can withstand harsh conditions and provide long-lasting, low-maintenance performance.
    • Energy-Efficient: Designed to minimize power consumption, offering a cost-effective solution for continuous operation.
    • Adaptable Beam Count: The CL15-16L features 16 beams, providing wide-area detection for large industrial doors and heavy machinery.

    Technical Specifications

    ParameterDescription
    Product TypeSafety Light Curtain Sensor
    Waterproof RatingIP67 (Dustproof and waterproof, suitable for environments exposed to moisture and harsh conditions)
    Working Voltage24V DC ± 10%
    Power Consumption≤ 4W
    Response Time≤ 20 ms
    Beam CountCL15-16L: 16 beams
    Detection RangeUp to 20 meters (depending on environmental factors and beam count)
    Beam Spacing75mm
    Operating Temperature-10°C to +55°C
    Relative Humidity95% (non-condensing)
    MaterialAluminum alloy housing with high-impact resistance
    Output TypeNPN or PNP output options available
    Response TypeLight (object detection)
    Mounting TypeAdjustable mounting bracket for easy installation and alignment
    Safety StandardsCE certified (Certificate No.: CTC142H1007801SC)

    Applications and Advantages

    Industrial Doors are a primary application for the CL15-16L IP67 Waterproof Safety Light Curtain. This sensor is ideal for various types of doors used in industrial environments where safety and efficiency are paramount. The CL15-16L provides the following benefits and applications for different types of industrial doors:

    • Rolling Doors: Used for high-speed access in warehouses and factories, rolling doors are safeguarded by the CL15-16L, ensuring that any obstruction—whether a person, vehicle, or material—will trigger immediate reopening, preventing accidents like forklift collisions or material damage.

    • Sectional Doors: Often found in industrial settings requiring large vehicle or machinery access, sectional doors are equipped with the CL15-16L to halt the door’s movement if an object is detected in its path, preventing injury or damage.

    • High-Speed Doors: These doors are typically used in environments like cold storage facilities and pharmaceutical plants, where quick operation is essential. The CL15-16L provides extra protection by stopping the door if it detects an obstruction, ensuring smooth operation without risk.

    • Foldable Doors: Ideal for spaces with limited room, foldable doors benefit from the CL15-16L’s precise detection ability, preventing injuries caused by fast-moving doors in high-traffic areas.

    • Automatic Sliding Doors: Used in both industrial and commercial settings, these doors rely on the CL15-16L to stop immediately if any object or person enters the door’s path, avoiding accidents and ensuring smooth operation.

    • Fire Doors: In industrial facilities, fire doors play a crucial role in limiting fire spread. The CL15-16L ensures that these doors automatically close and do not interfere with people or vehicles during operation, reducing the risk of injury and ensuring fire safety.

    • Cold Storage Doors (Cold Rooms): Designed to operate effectively in low-temperature environments (down to -25°C) while resisting moisture and fog interference, the CL15-16L ensures optimal safety in cold storage areas where other sensors may fail due to environmental factors.

    Additional Applications:

    • Material Handling Systems (Conveyor Systems): The CL15-16L ensures safe operation in material handling systems, protecting both workers and equipment from accidental collisions.

    • Robotic Arms: In automated production lines, the sensor ensures that robotic arms stop immediately if a worker or object crosses its path.

    • Automated Guided Vehicles (AGVs): The CL15-16L ensures the safe operation of AGVs in dynamic factory environments, avoiding collisions with both obstacles and personnel.

    • Packaging Equipment: High-speed packaging machinery requires precise safety measures, which the CL15-16L provides by halting machinery immediately when an obstruction is detected.


    Why Choose Shenzhen JUTAI Comm Co., Ltd.?

    At Shenzhen JUTAI Comm Co., Ltd., we specialize in providing high-quality, durable, and reliable industrial safety solutions. Our CL15-16L IP67 Waterproof Safety Light Curtain Sensor is designed with cutting-edge technology to ensure optimal safety performance in the most demanding industrial environments.

    With over a decade of experience in the sensor industry, we deliver robust, cost-effective solutions tailored to meet your unique safety needs. Our dedicated customer support team is available to assist with any technical inquiries or installation questions.

    For more information or to request a quote, please visit www.accesssecuritysolution.com or contact us directly:

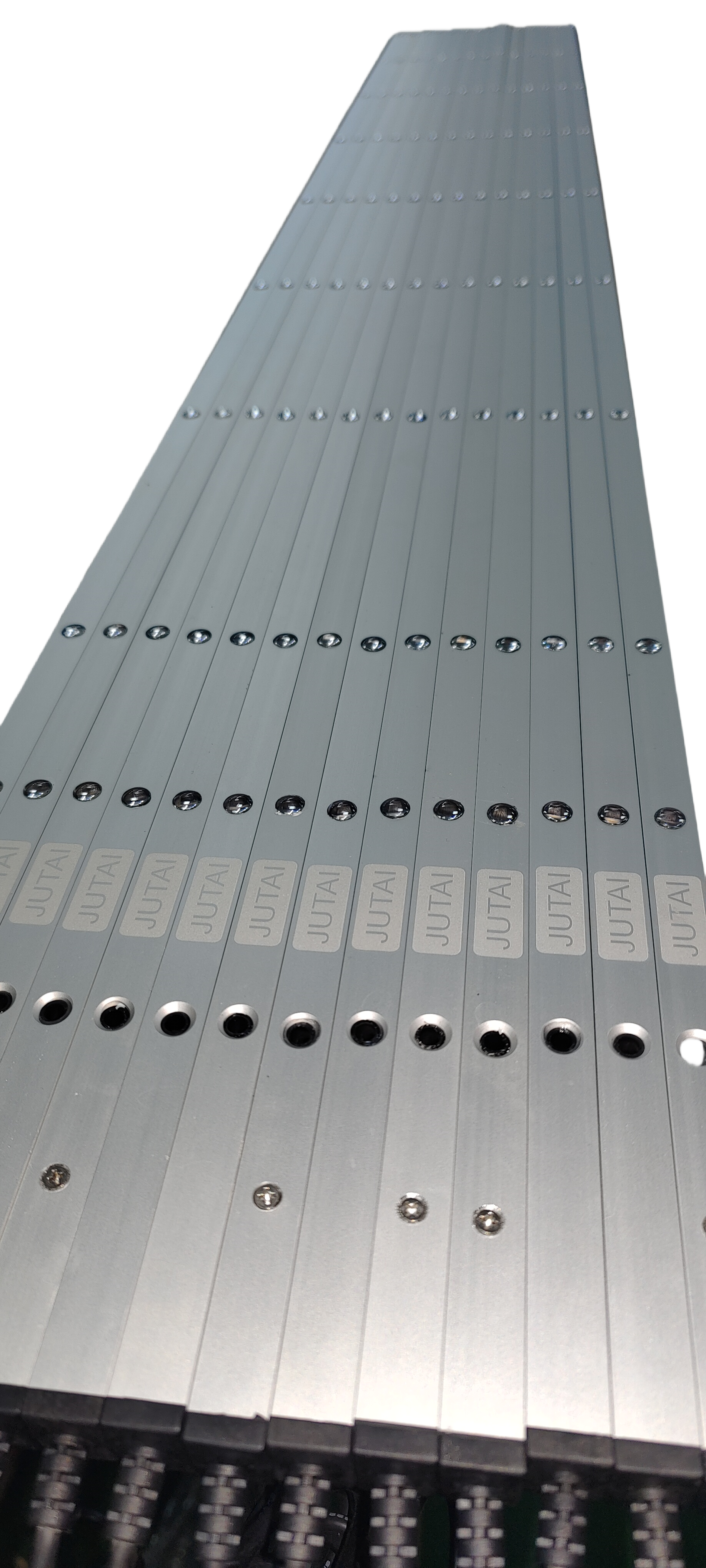

    1500mm 16 Beams Industrial Safety Light Curtain Sensor For High-Speed Doors

    1500mm 16 Beams Industrial Safety Light Curtain Sensor For High-Speed Doors

    1500mm 16 Beams Industrial Safety Light Curtain Sensor For High-Speed Doors

    Company Profile

    Shenzhen Jutai Comm Co., Ltd. stands as a preeminent manufacturer with a specialized focus on Door Sensor Photoelectric Sensors. We pride ourselves on our seamless integration of research and development, production, sales, and distribution capabilities. Our unwavering dedication lies in providing our esteemed customers with outstanding solutions that are second to none. Rooted in innovation and an unyielding commitment to quality, we strive to not only meet but exceed industry standards. As we progress in our brand expansion, our ambition is to become your reliable production partner, accompanying you every step of the way in the creation and promotion of your own brand within the realm of door sensor technology.
