Product Description of RVP42 - 7M

1. Product Introduction
   • The RVP42 - 7M is a high - performance radar developed by Shenzhen JUTAI COMM CO., LTD. It is designed for applications in industries such as industrial doors, garage doors, cold storage doors, and barriers. This radar can detect the presence of people or vehicles in the environment and has the function of identifying and filtering laterally moving vehicles or pedestrians.

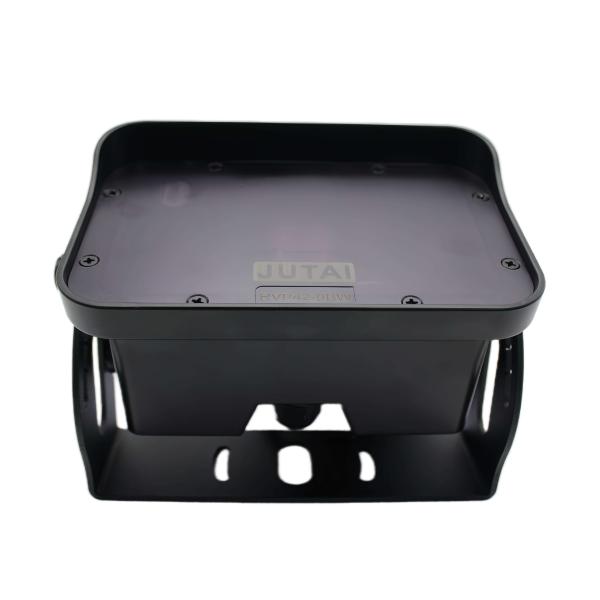

2. Appearance and Dimensions
   • The radar features a grey anodized aluminum and polycarbonate housing. Its dimensions (including the bracket) are 164mm x 111mm x 94.5mm, and it weighs 630g. The overall design is compact and suitable for various installation locations.
3. Wiring and Installation
   • Power Supply: The working voltage range is 12 - 36VADC, with a working current of less than 100mA. The power cables are color - coded for easy identification: black for ±12 - 36VADC and red for +12 - 36VADC.
   • Relay Output: The default relay output is NO (NC). The yellow wire is for relay 1 COM, and the green wire is for relay 1 NO. The relay signal output is indicated by a green light.
   • Installation Requirements: The sensor should be firmly installed on a flat surface to minimize the impact of vibration. Avoid any obstructions such as banners or plants that could block the detection area. Also, ensure that no metal objects are in front of the sensor cover, and do not install the sensor close to fluorescent lights.
   • Installation Height: It can be installed at a height ranging from 2 meters to 7 meters, providing flexibility in different application scenarios.
4. Technical Parameters
   • The Doppler Radar and Planar Module of the RVP42 - 7M possess the following technical specifications as presented in the table above. The 24.125 GHz emission frequency allows for precise object detection. With an emission power of less than 20dBm, it operates efficiently while maintaining safety. The wide temperature range from -30°C to +60°C and the ability to function in 0% - 95% relative humidity (without condensation) make it suitable for diverse environmental conditions. The 7m cable length offers convenience during installation and connection. Its IP65 protection level provides good protection against dust and water ingress. Additionally, it can detect vehicle speeds up to 25km/h, which is beneficial for applications where vehicle movement needs to be monitored.
5. Sensor Function Parameter Settings (Details not fully provided in the original document but can be added based on further information)
   • Although specific details are not complete in the current document, generally, this section would cover settings related to the sensitivity of the radar for detecting different objects (people and vehicles), the range of detection, and any adjustable parameters that can optimize its performance in specific environments. For example, it may include options to adjust the detection threshold for different sizes or speeds of objects.
6. Remote Control Operation (with Special Notes)
   • The radar can be powered on by long - pressing the START button on the remote control. The remote control should be aimed at the radar without shaking until the START button stays lit. If the START button flashes, it may indicate an issue, and the user may need to long - press the START button to turn it off, remove and reinstall the battery, and then repeat the power - on process. Importantly, the remote control only functions within the first 30 minutes after the radar is powered on. If more than 30 minutes have passed, the radar needs to be powered off and then powered on again for the remote control to work.
