RVP42-7BW Bluetooth Radar Motion Sensor for Industrial Doors
Product Introduction
The RVP42-7BW is a high-performance motion radar developed by
Shenzhen JUTAI COMM CO., LTD. Specifically designed for industrial
door systems, garage doors, cold storage doors, and barriers, this
sensor offers reliable detection of both vehicles and pedestrians.
The RVP42-7BW comes with Bluetooth functionality, allowing users to
conveniently adjust the radar settings via a mobile app. It is
equipped with advanced filtering technology, enabling it to
distinguish and ignore laterally moving objects, ensuring optimal
performance in various environments.

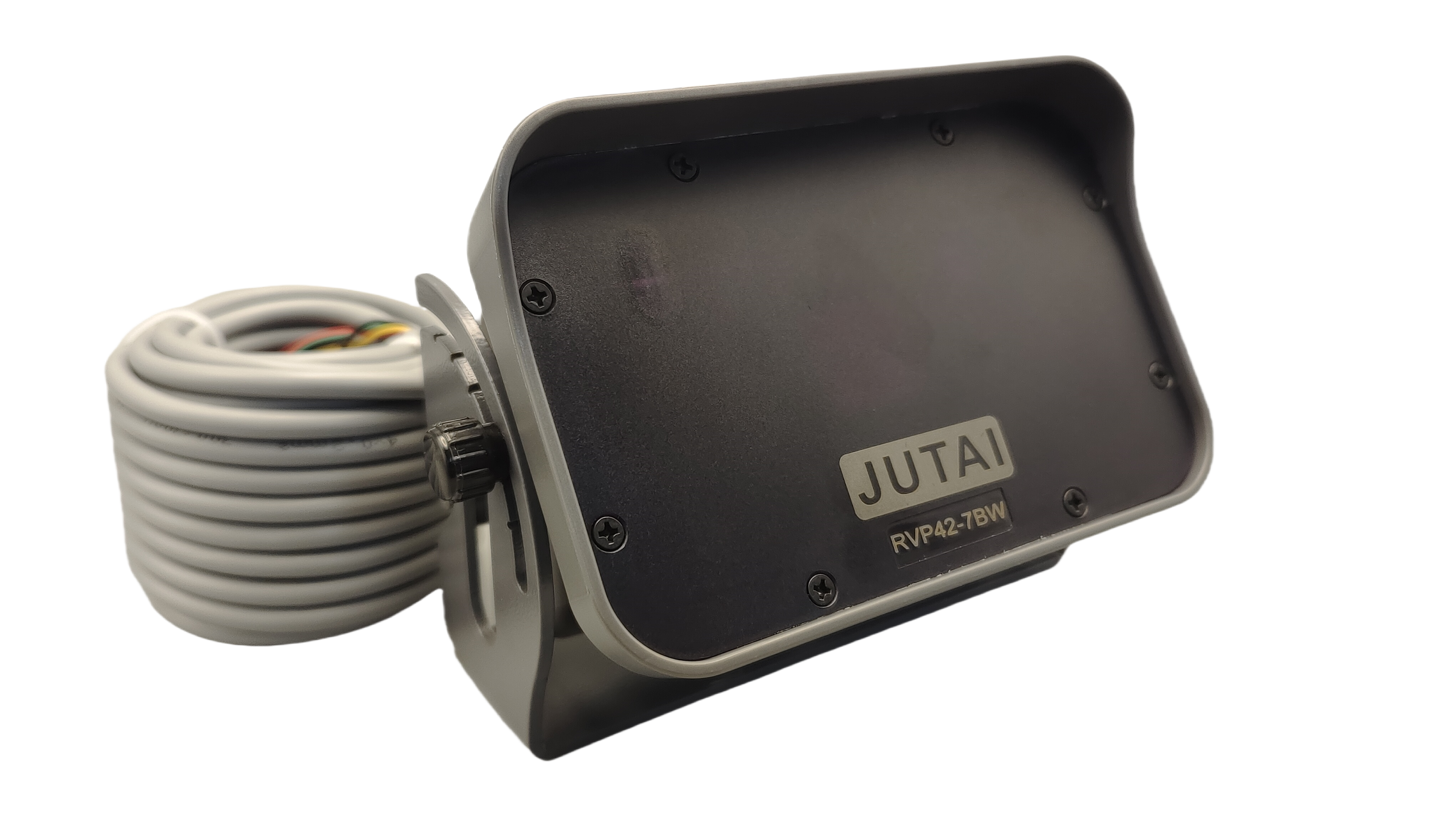

Appearance and Dimensions
This radar features a robust grey anodized aluminum and
polycarbonate housing. The sensor’s dimensions (including the
bracket) are 164mm x 111mm x 94.5mm, with a total weight of 630g.
Its compact design makes it suitable for installation in a wide
range of locations.
Wiring and Installation
- Power Supply: Operating voltage is 12 - 36VDC, with a current draw of less than
100mA. The power cables are color-coded for easy identification:
black for ±12 - 36VDC, and red for +12 - 36VDC.
- Relay Output: The default relay output is NO (NC). The yellow wire is for relay
1 COM, and the green wire is for relay 1 NO. The status of the
relay is indicated by a green LED light.
- Installation Guidelines: To ensure accurate performance, the sensor must be securely
mounted on a flat, stable surface, away from any obstructions (such
as banners or plants) that may interfere with the detection area.
Avoid placing the sensor near fluorescent lights or metal objects,
as they may disrupt its operation.
- Installation Height: The RVP42-7BW can be installed at heights ranging from 2 meters to
7 meters, allowing flexibility in different applications.
Technical Parameters
The RVP42-7BW uses Doppler radar technology to achieve highly
accurate motion detection. It operates within a frequency of 24.125
GHz and has a low emission power of less than 20dBm. This radar
sensor is designed to work efficiently in diverse conditions, with
a wide temperature range from -30°C to +60°C and the ability to
operate in environments with humidity levels from 0% to 95%
(without condensation).
Parameter | Specification |
---|
Emission Frequency | 24.125 GHz |
Emission Power | <20dBm |
Temperature Range | -30°C to +60°C |
Humidity | 0% to 95%, no condensation |
Maximum Vehicle Detection Speed | 25 km/h |
Cable Length | 7m |
Protection Grade | IP65 |
Bluetooth Parameter Configuration
The RVP42-7BW features Bluetooth connectivity, enabling seamless
parameter adjustments via a mobile app. This feature provides
enhanced convenience for installers and users, offering the ability
to fine-tune detection settings remotely, optimizing performance
without the need for physical access to the sensor. Key parameters
that can be configured via Bluetooth include:
- Detection Sensitivity
- Relay Output Settings
- Detection Area
- Mounting Height
- Direction Recognition

Remote Control Operation
This radar sensor can also be powered on using the provided remote
control. Simply press and hold the START button until it
illuminates, indicating the sensor is powered on. In cases where
the START button flashes, users should long-press it to turn off
the sensor, reinstall the battery, and restart the process. The
remote control is effective for the first 30 minutes after the
radar is powered on. If more than 30 minutes have passed, the radar
will need to be powered off and on again to enable the remote
control functionality.
Applications
The RVP42-7BW is an ideal solution for a range of industrial door
applications, offering precise motion detection for various types
of doors, including:
- Industrial Entrance Doors: Ensures smooth, hands-free operation in environments requiring
high traffic flow.
- Cold Storage Doors: Perfect for refrigerated environments, where reliable detection
and energy efficiency are crucial.
- Garage Doors: Offers quick response times for vehicle and pedestrian detection,
enhancing security and convenience in parking facilities.
- Dock Doors: Maximizes operational efficiency by automating door functions in
loading and unloading zones.
Conclusion
The RVP42-7BW Bluetooth radar sensor provides a comprehensive,
reliable, and easy-to-use solution for industrial door systems.
With its advanced features, such as Bluetooth connectivity for
remote configuration, high-precision motion detection, and robust
environmental performance, it’s the ideal choice for a wide range
of industrial applications.
